Precision Blanchard and surface grinding at Kaskaskia Tool & Machine
Capabilities

Walk the floor.

An interactive map of our 35,000 sq ft shop. Select a station to see what it does, what it runs, and what it can hold.

KTM SHOP FLOOR — 35,000 SQ FTSHIPPING DOCKCNC MachiningGrindingWeld BayToolingWire EDMAssemblyEngineering / CADInspection Lab

Hover to preview · click to lock a station.

Station

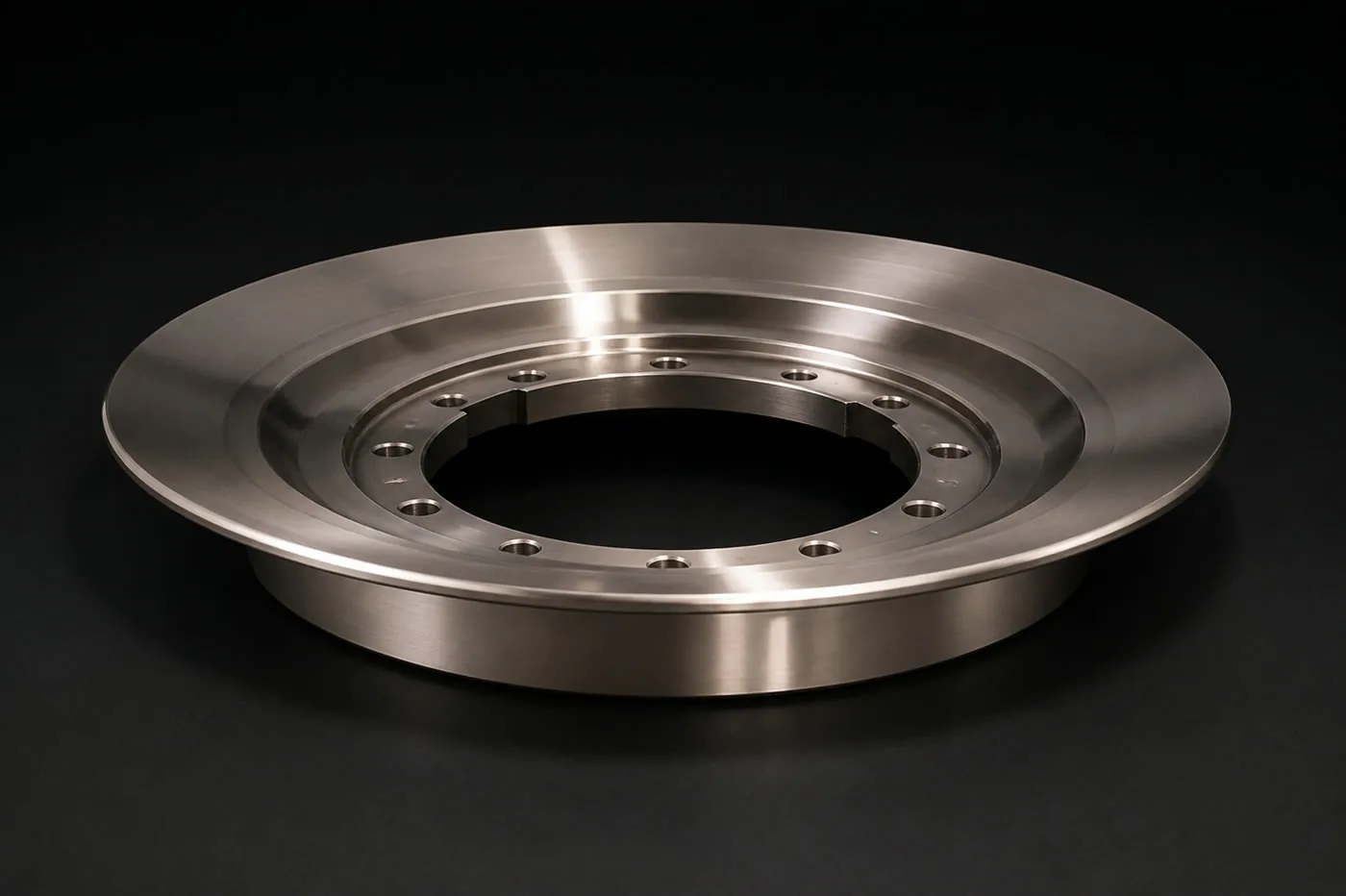

CNC Machining

Our team of engineers uses the latest CAD/CAM software and a large range of CNC horizontal and vertical mills to take parts from raw stock to finished tolerance in-house. From one-off prototypes to recurring production, we machine complex geometry in ferrous and non-ferrous alloys.

  • CNC horizontal & vertical milling centers
  • CNC turning
  • Mastercam CAM programming
  • Ferrous, non-ferrous & exotic alloys
  • Prototype through production quantities

Tolerances are quoted per job. KTM routinely holds sub-0.001" tolerances, to 0.0005" where the part requires it.

Daewoo ACE-B130 Horizontal — large-envelope CNC machine at KTMToshiba Vertical Turning Lathe — large-envelope CNC machine at KTMJohnford 5-Axis — large-envelope CNC machine at KTM
Don’t missSee the big iron — our flagship large machinesJohnford 5-axis · Daewoo horizontal · Toshiba VTL
Flagship Machines

The big iron.

The large-envelope machining most shops send out — horizontal boring and milling, big-diameter vertical turning, and full 5-axis, all under one roof.

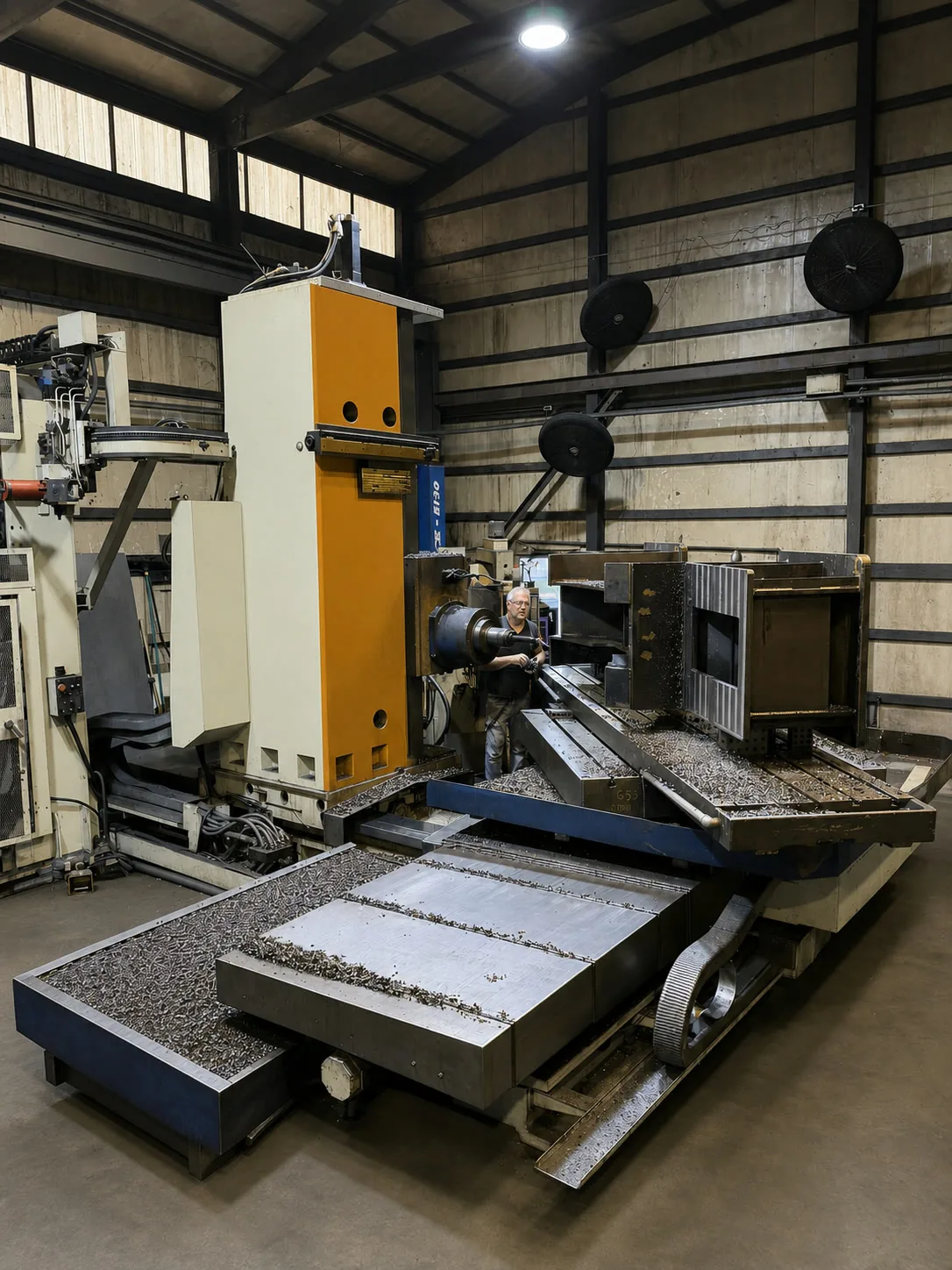

Daewoo ACE-B130 Horizontal

Large-envelope horizontal machining

  • 119" × 80" travels
  • CAT 50 · B-axis · 60-tool ATC
  • Workpieces to 33,000 lb

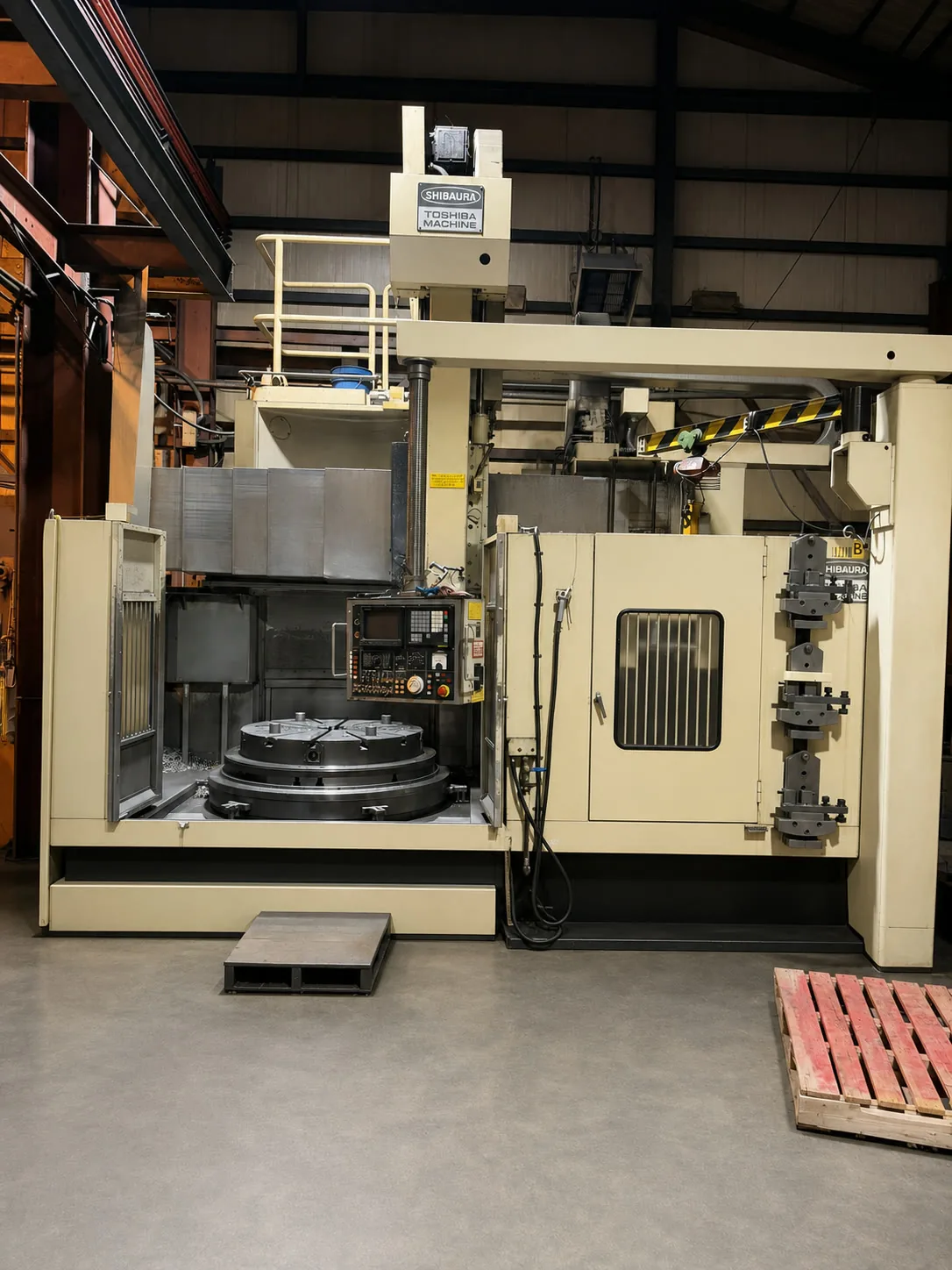

Toshiba Vertical Turning Lathe

Big-diameter vertical turning

  • 63" OD × 49"
  • Heavy round parts
  • Flanges, rings & hubs

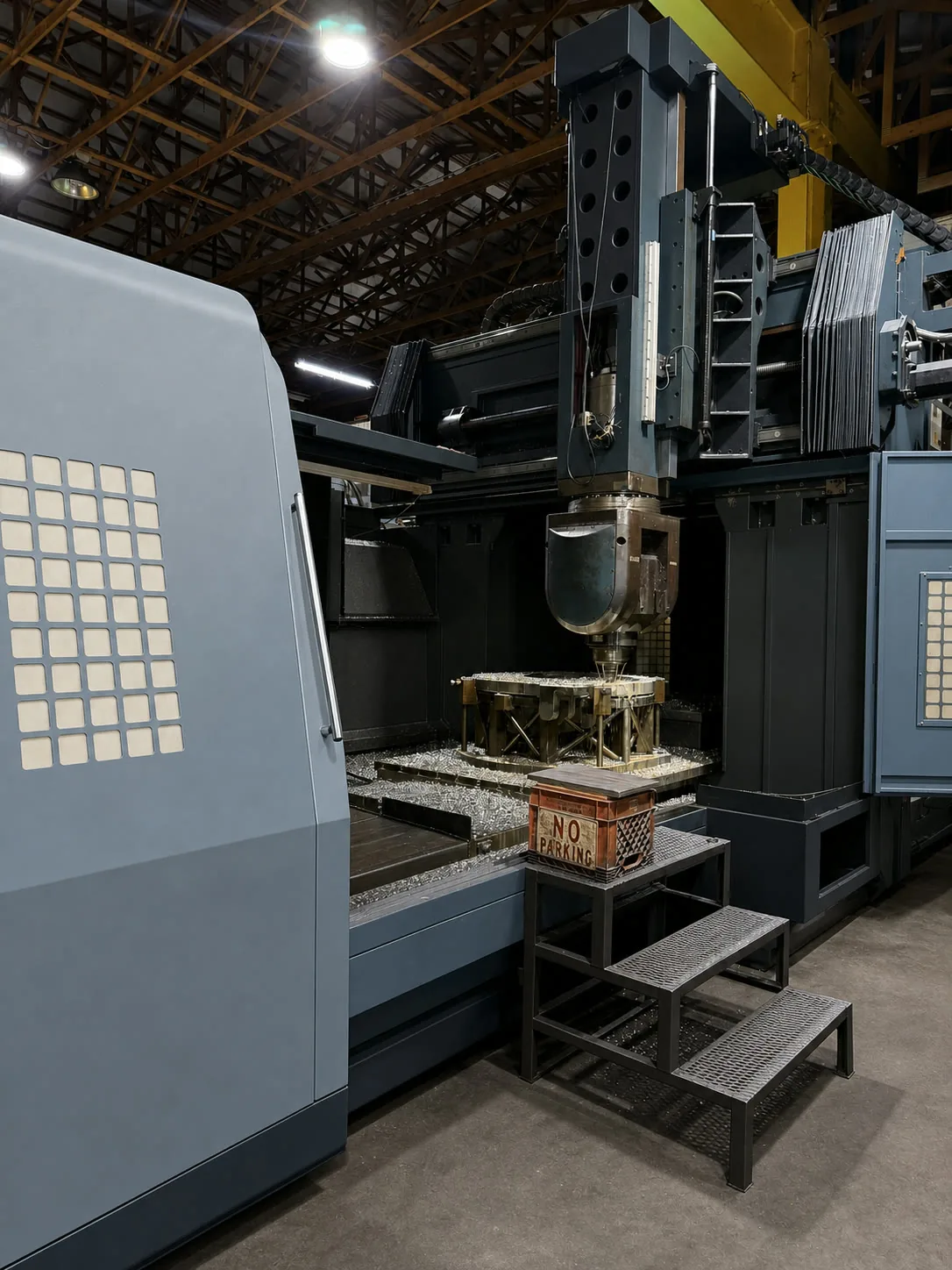

Johnford 5-Axis

Complex geometry in a single setup

  • 119" × 60" × 35"
  • 10,000 RPM
  • Multi-face 5-axis
Equipment Roster

Verified capacity, machine by machine.

Large-envelope machining, grinding, fabrication and inspection under one roof. Full owner-verified roster below — the complete list is also available as a PDF.

Vertical CNC Machining

  • Seven vertical machining centers, CAT 50
  • Travels up to 65" X × 33" Y

Horizontal CNC Machining

  • Daewoo ACE-B130 — 119" × 80", CAT 50, B-axis, 60-tool ATC, 33,000 lb
  • OKK MCH800 (three) — 81" × 40", twin 32" pallets
  • OKK MCH560 (two) — 28" × 22", twin 20" pallets
  • 4th-axis on all

5-Axis Machining

  • Johnford 5-axis — 119" × 60" × 35", 10,000 RPM

CNC Turning

  • Toshiba VTL — 63" OD × 49"
  • Slant-bed lathes (two) — to 24" OD × 60", 3.75" bar feed

Precision Grinding

  • Blanchard (rotary) — 129" swing × 48" height
  • Surface grinding — 42" × 144" × 36"

Wire EDM

  • Two Mitsubishi wire EDM
  • Submerged cutting of workpieces to 1,700 lb

Welding & Fabrication

  • AWS-certified MIG & TIG welding
  • CNC plasma / flame cutting — 96" × 240", to 6" thick
  • 175-ton press brake

Inspection

  • Two CNC CMMs — envelopes to 60" × 51" × 39", PC-DMIS
  • Temperature-controlled inspection room
  • AS9102 first-article inspection
Download Full Equipment List (PDF)

Need a capability you don’t see?

Our network and engineering team close the gaps — one purchase order, one accountable partner.
